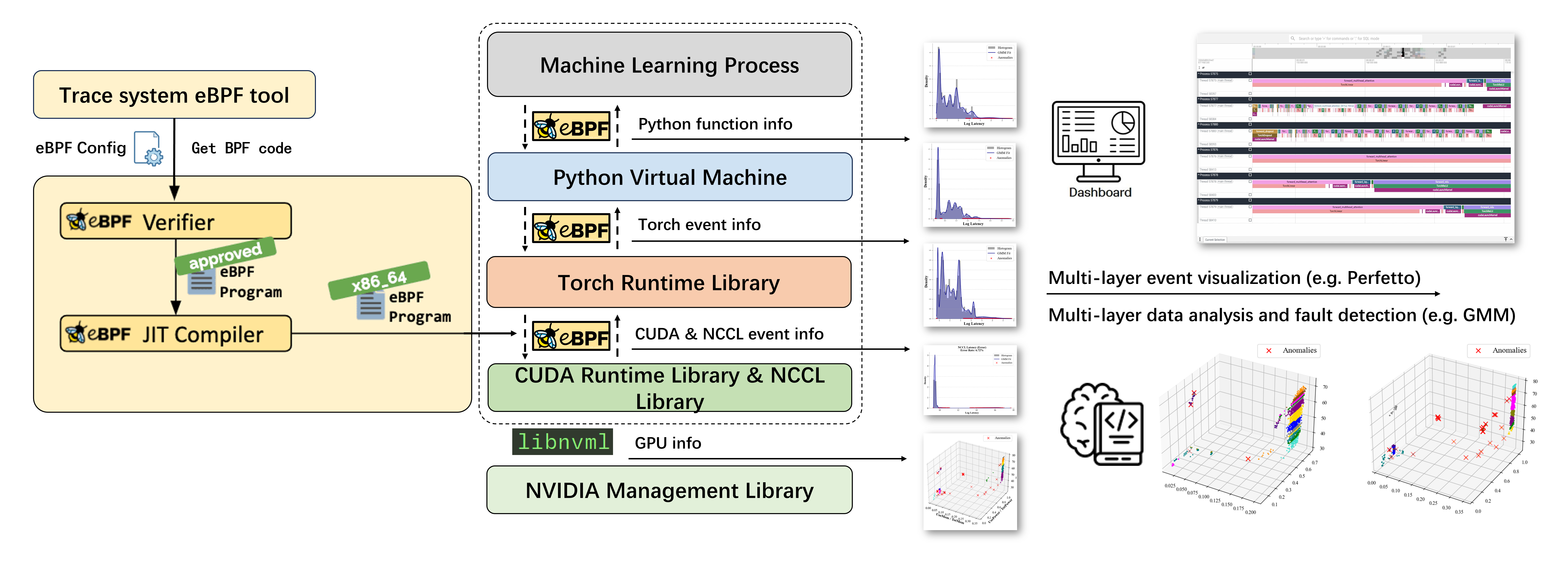

eACGM provides zero-intrusive, low-overhead, full-stack observability for both hardware (GPU, NCCL) and software (CUDA, Python, PyTorch) layers in modern AI/ML workloads.

Features

Event tracing for CUDA Runtime based on eBPF
Event tracing for NCCL GPU communication library based on eBPF
Function call tracing for Python virtual machine based on eBPF
Operator tracing for PyTorch based on eBPF
Process-level GPU information monitoring based on libnvml
Global GPU information monitoring based on libnvml
Automatic eBPF program generation
Comprehensive analysis of all traced events and operators
Flexible integration for multi-level tracing (CUDA, NCCL, PyTorch, Python, GPU)
Visualization-ready data output for monitoring platforms

Visualization

To visualize monitoring data, deploy Grafana and MySQL using Docker. Access the Grafana dashboard at http://127.0.0.1:3000.

cd grafana/
sh ./launch.sh

Start the monitoring service with:

./service.sh

Stop the monitoring service with:

./stop.sh

Case Demonstration

The demo folder provides example programs to showcase the capabilities of eACGM:

pytorch_example.py: Multi-node, multi-GPU PyTorch training demo
sampler_cuda.py: Trace CUDA Runtime events using eBPF
sampler_nccl.py: Trace NCCL GPU communication events using eBPF
sampler_torch.py: Trace PyTorch operator events using eBPF
sampler_python.py: Trace Python VM function calls using eBPF
sampler_gpu.py: Monitor global GPU information using libnvml
sampler_nccl.py: Monitor process-level GPU information using libnvml
sampler_eacg.py: Combined monitoring of all supported sources
webui.py: Automatically visualize captured data in Grafana

Citation

If you find this project helpful, please consider citing our IWQoS 2025 paper (In press, to appear).
